automatic filter press

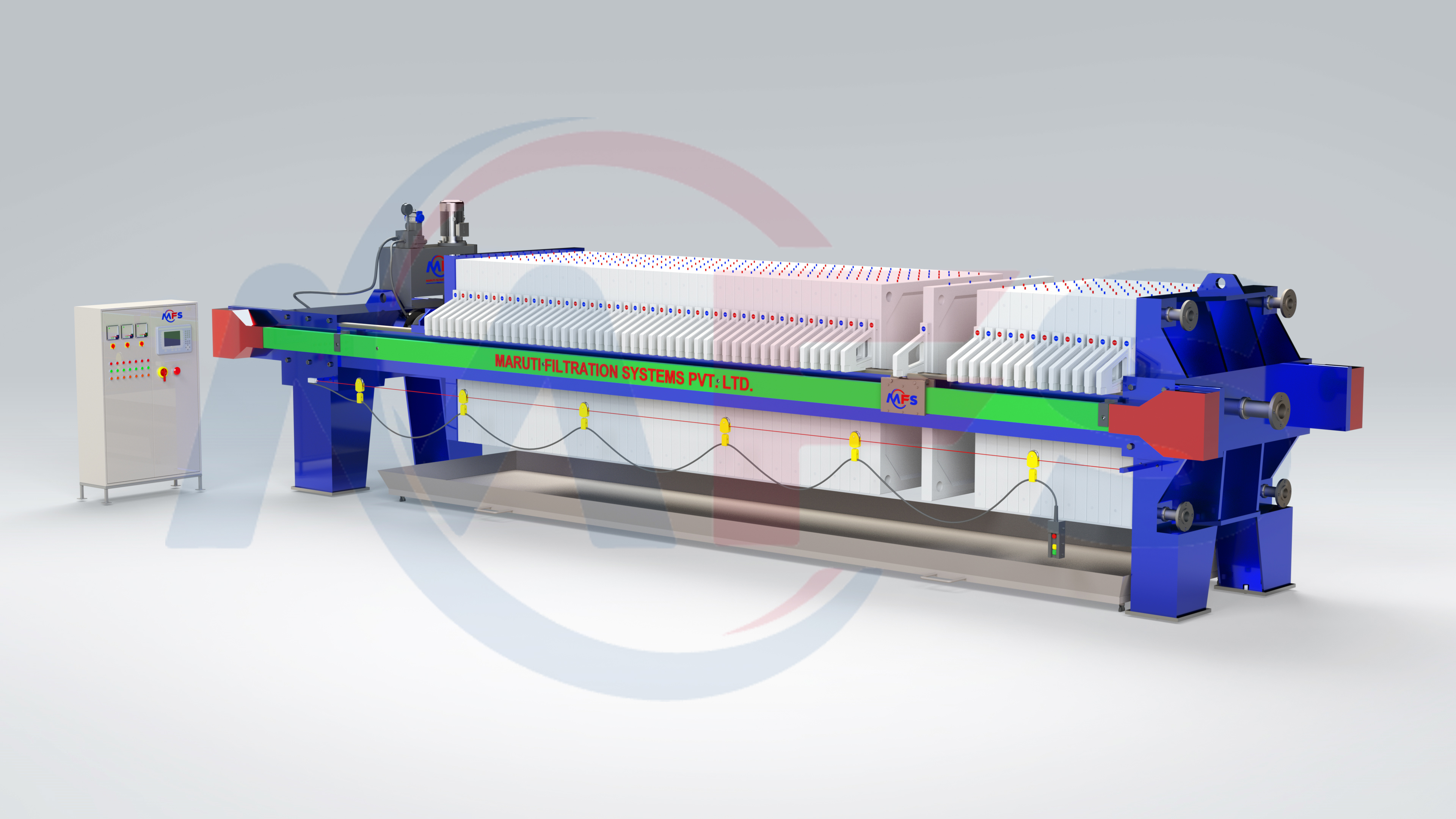

Automatic Filter press consists of Pullback cylinder, power pack, PLC, Plate Shifter, Pneumatic valves & Mix pack membrane plates. The whole process is fully automatic.

Filter Presses in principal are pressure filters in where a filters pack comprising of a series of plates and frames or chamber plates in compressed between one fixed and one movable bulk head on the other end. The filter media is placed between each individual element.


By applying a high pressure squeeze to the filter cake you produce the final cake with solids content from 50 to 100% greater than can be achieved with conventional filter presses. This is important for either maximum yield, where a high value liquid is your product, or high solids-content, where reduced moisture in the final cake is critical

The membrane squeeze plate is offered to suit up to 16 bar squeezing pressure. Due to additional liquid extraction during the squeeze cycle, solid percentages increase. Filtration cycle time are reduced compared to the conventional recess chamber plate (Plate and frame) filter press, resulting in Benefits of membrane plates v/s chamber plates. Conventional type filter presses are limited to using feed pump discharge pressure to produce dry solids, resulting in longer cycle times.

The membrane squeeze plate reduced the long packing cycle by introducing a squeeze medium in to the center of the membrane squeeze plate. This allows the membranes to flex against the cake, compressing and packing it. Filtration cycle are shorter, dry solids are increased, and waste volume is reduced.

This membrane is designed to de water the most difficult sludge and protects the plates against potential cake less chambers

STANDARD SIZE OF FILTER PRESS :
  • 630 MM X 630 MM
  • 800 MM X 800 MM
  • 1000 MM X 1000 MM
  • 1200 MM X 1200 MM
  • 1500 MM X 1500 MM
  • 1500 MM X 2000 MM
  • 2000 MM X 2000 MM
