That sounds like a comprehensive description of Filter Cloths and their importance in filtration processes. It's great to hear that MFS is a global authority on filter cloths and takes the time to understand each customer's unique requirements.

By customizing filter cloths to suit specific applications, MFS ensures that their customers' filtration needs are met effectively. Their diverse range of filter cloth materials, including natural, synthetic, and felted materials, provides options to address various filtration challenges.

It's commendable that MFS prioritizes quick and responsive turnaround times. By collaborating with trusted suppliers located close to their manufacturing facilities, they can ensure the availability of the necessary cloth materials for specific applications. This approach helps minimize delays and ensures that customers receive the filter cloths promptly.

Overall, it seems like MFS is dedicated to providing high-quality filter cloths and excellent customer service to enhance filter press operations.

Type of Filter Press Cloth









  • he weave of your filter cloth will also depend on your specific application. For example if your application is mining for gold we have specific filter cloths designed to withstand extreme pressures, that capture particulates as small as .05 microns. If your application is metal finishing, or other heavy industrial applications that require cleaning and processing industrial wastewater we have filter cloths that will apply to your specific need. Learn How to Choose the Right Filter Cloth for Your Dewatering Process.
  • Proper material selection impacts performance. MFS has one of the widest ranges of materials available. We will help you choose the ideal material for your application.
  • Our state-of-the-art laboratory staff can assist in the specification of your filter cloth. Because there are different types of cloth weaves and materials, we want to ensure the correct cloth is specified for your application. Your filter cloth specification will depend on the size of your press and the dewatering application it's being used in. For example, a battery recycling plant will utilize a different sized filter cloth and filter press than a municipal power plant whose application is separating sulfur dioxide from their slurry.
  • MFS is your first and last source for cloths for your Filter Press.

Technical Specifications

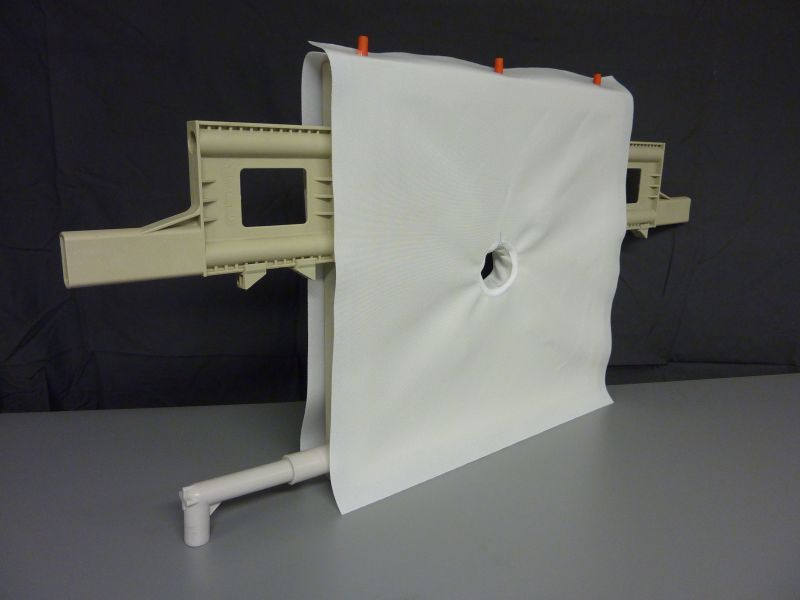

Format Standard Sizes (in mm): 400, 470, 500, 630, 800, 915, 1000, 1067, 1200, 1300, 1450, 1470, 1500, 1500 x 2000 and 2000 x 2000 mm. These formats are available in open and closed versions. Larger and differently sized formats on request.

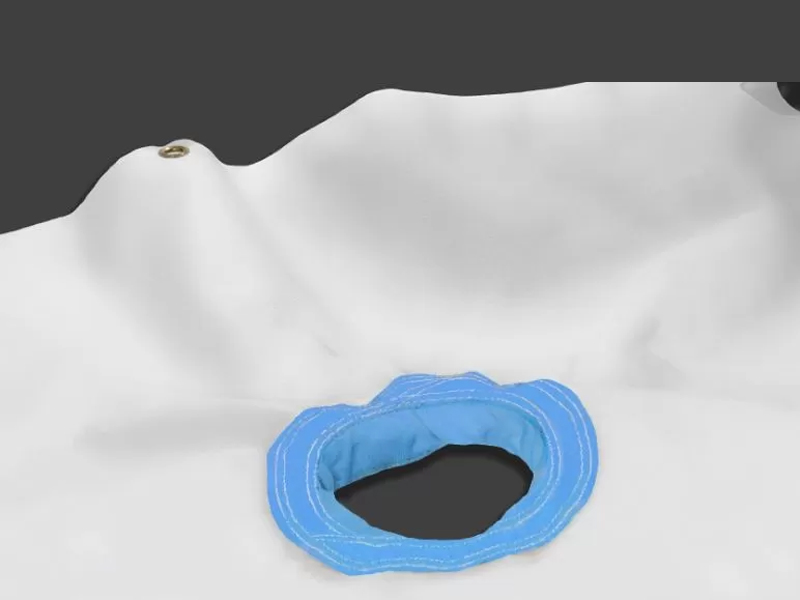

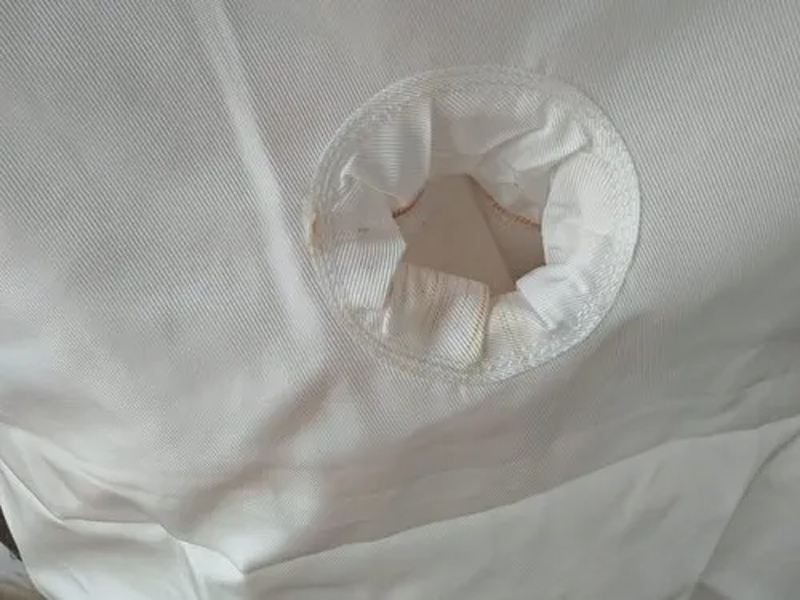

Sludge Inlet Standard inlets: central inlet, decentralized inlet, corner inlet
Pressure Depending on the version, standard products are suitable for a maximum filtration pressure of 8 bar or 16 bar.
Temperature The maximum permissible filtration temperature depends, among other things, on the filtration pressure, the chemical composition of the slurry to be filtered, the cycle time and the choice of material.
Materials Filter Cloths can be made of the following materials for specific applications:
  • Polypropylene (PP) (heat-stabilized and if necessary calendared)
  • Polyamide (Nylon-6 &6.6), (heat-stabilized)
  • Polyester (PET), (Heat set calendared)
  • PBT (Heat set calendared)
  • Cotton, Poly Cotton
  • Other materials on request
  • SPUN yarn
  • Multifilament yarn
  • Monofilament yarn
  • Yarn blends (Multi x Spun& Mono x Multi)

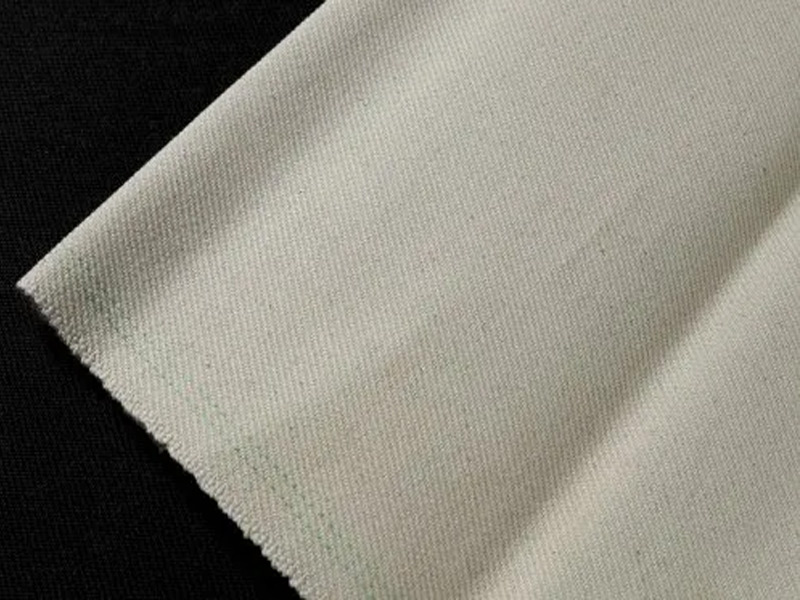

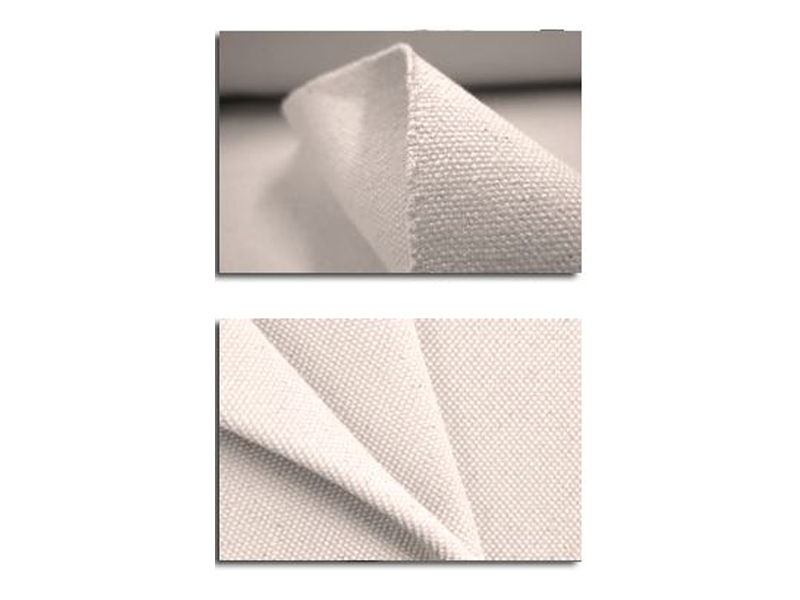

  • Plain weave
  • Broken twill weave

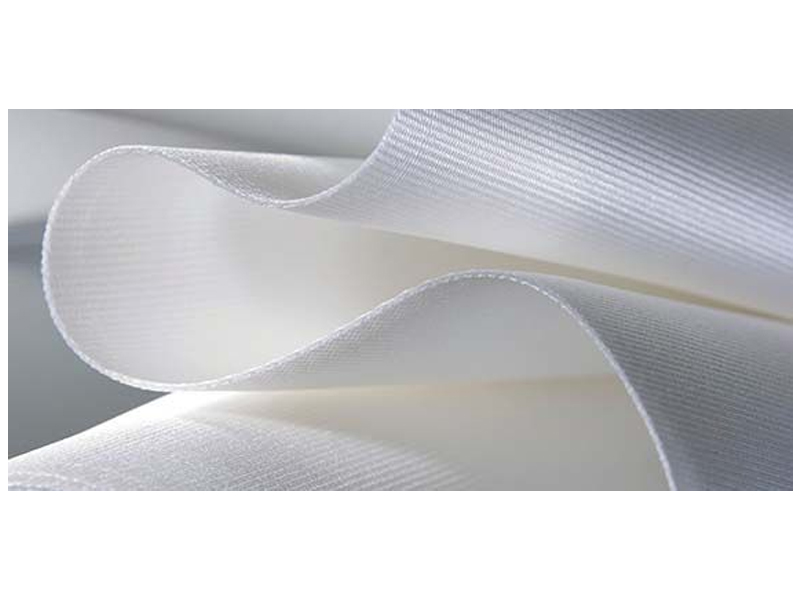

  • Twill weave
  • Satin weave

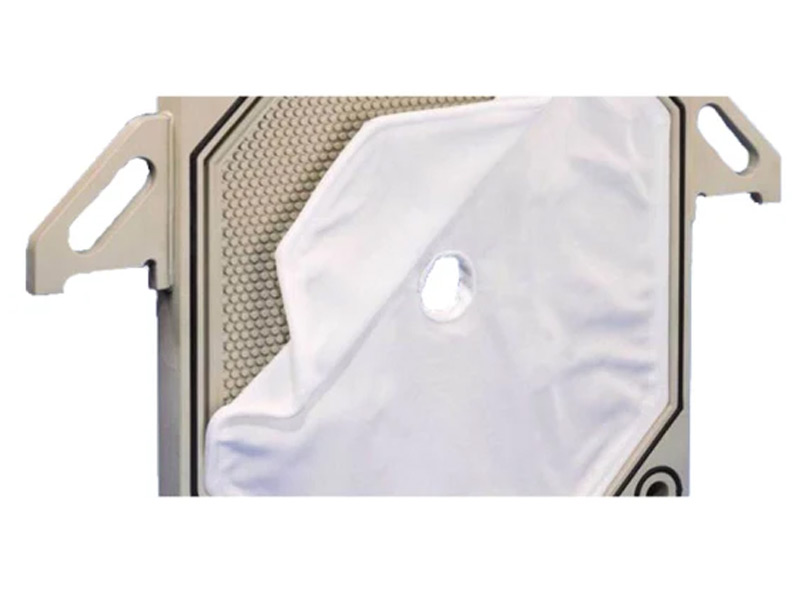

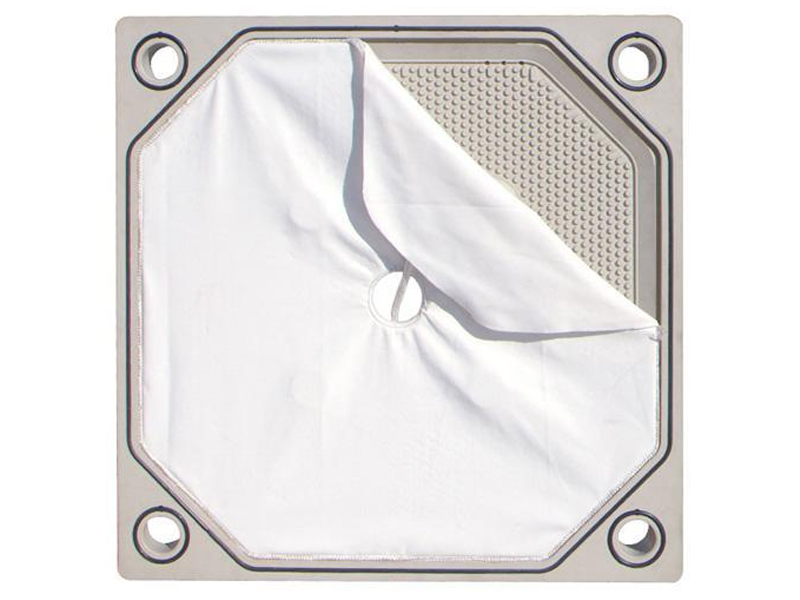

Versions Filter cloths can be made for Non-Gasketed (NG) or Caulked, Gasketed Recessed (CGR) chamber plates.
